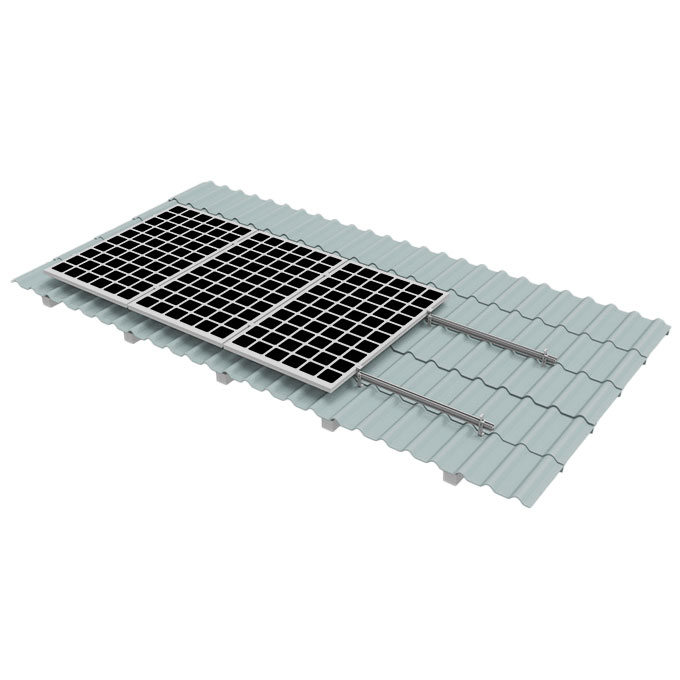

Tile Roof Solar Mounting System

Windsorose Solar roof photovoltaic bracket system adopts an “all aluminum alloy” solution. The system is lightweight and highly pre-installed, effectively saving time and labor costs for on-site construction. The roof photovoltaic bracket has strong tensile strength and is easy to install, ensuring the rapid delivery of the project. In addition, professional custom designs are made for different vertical lock-edge color steel tile types to achieve perfect coordination between the fixture and the color steel tile to meet customers’ various installation needs.

Tile Roof Solar Mounting System

Technical Specifications:

Installation Tile Roof
Wind Load up to 60m/s
Snow Load 1.4kn/m2
Tilt Angle Parallel to Roof Surface
Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material Aluminum alloy 6005-T5 and stainless steel SUS 304
Warranty 10 Years Warranty

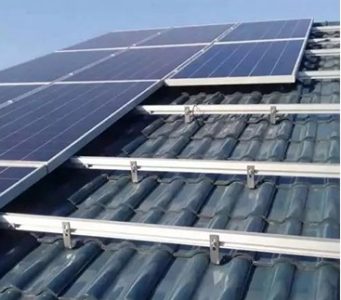

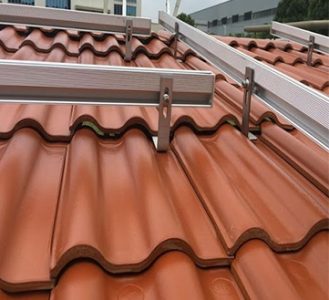

ROOF MOUNTING PROJECT
ROOF MOUNTING PROJECT
ROOF MOUNTING PROJECT
ROOF MOUNTING PROJECT
