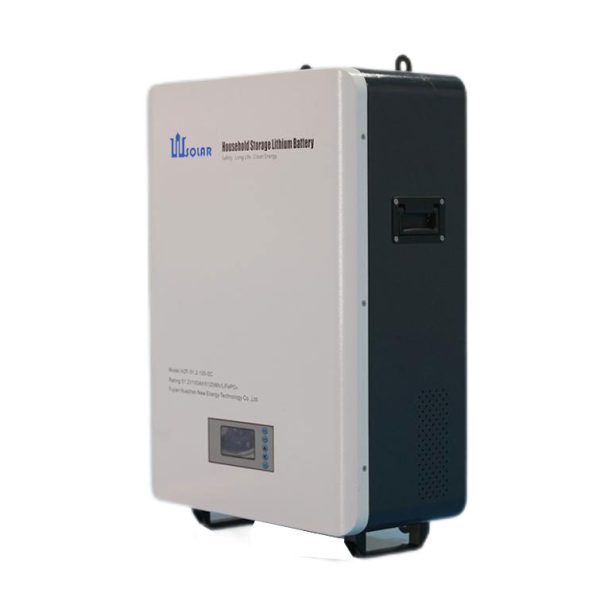

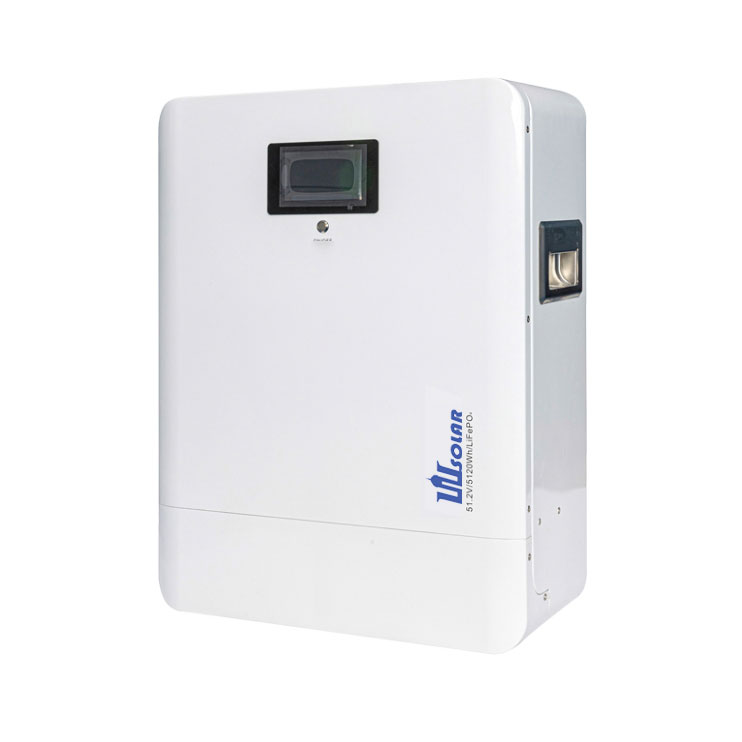

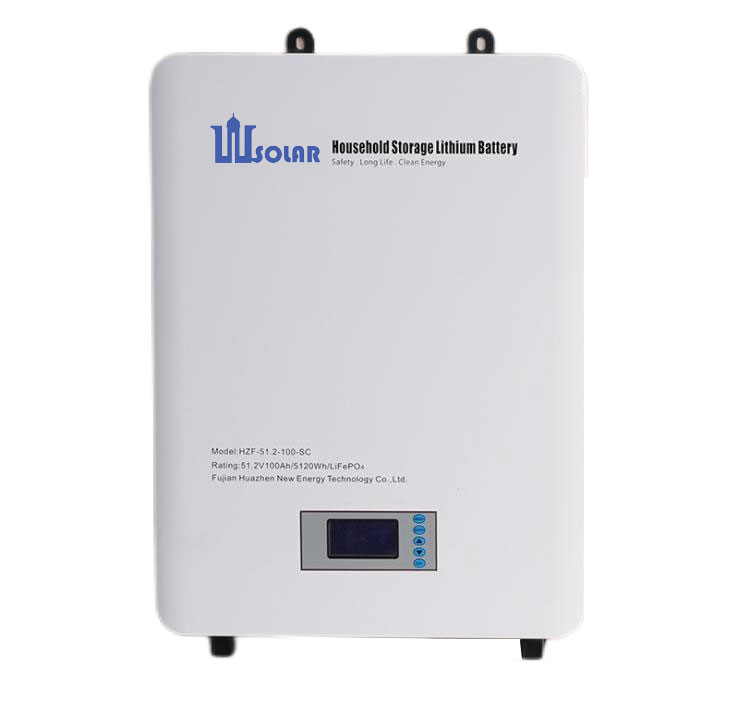

Wall-mounted home energy storage power wall battery

The battery system primarily stores power for the home solar system, and it can optimize the use of power and ensure the efficient operation of the complete home energy storage system. The comprehensive touch screen and easy-to-operate buttons make it easy for users to manage the battery system.

  • Nominal Battery Energy:  5.12Kwh -15.36Kwh
  • Nominal Capacity: 100Ah-300Ah
  • Nominal Voltage: 51.2V
  • Battery Type: LiFePO4
  • Delivery time: 15-40 days
  • Warranty: 5 Years

Wall-mounted home energy storage power wall battery

Features:

★Adopts lithium iron phosphate power cell, bringing better product performance and reliability
★ Each battery module unit is equipped with a high-performance BMS system for scientific cell management
★ The touch screen has various battery status
★Battery module units can be connected in parallel for expansion
★Supports communication matching of various inverters
★Adopts floor-type design, easy to install
★Widely used in various application scenarios ,such as home ,store and office

Function Description

  1. LCD Display
  2. Function Buttons
  3. Handle Model1
  4. Handle Model2
  5. Wall-mounted fixing brackets
  6. Battery Positive +
  7. Communication port RS485
  8. Communication port CAN
  9. Set the battery address
  10. the operating status of the equipment
  11. Fault Indicator
  12. Indicate battery capacity status
  13. Power on/off switch
  14. Battery Negative-
wall-mounted home storage system Function
Specifications:
Product model HZF-51.2-200-SB HZF-51.2-280-SA
Battery type LiFePO4 LiFePO4
Nominal voltage 51.2V 51.2V
Rated power 10.24KWh 14.336KWh
Rated capacity 200Ah 280Ah
Charging voltage 58.4V 58.4V
Discharging cut-off voltage 42V 42V
Max continuous charge 50A 140A
Max continuous discharge 100A 200A
Net weight about 96Kg about 126Kg
Dimension(mm)[W*T*H] W500*T200*H900 W500*T265*H950
Charging temp.range 0~45℃ 0~45℃
Discharging temp.range -20~50℃ -20~50℃
Cycle life[1] 5000 Cycles 5000 Cycles
Protection rating IP20 IP20
 Communication CAN/RS 485 CAN/RS 485
Warranty 5Years 5 Years
[1]Test conditions:0.2C charging/discharging,@25C,60%DOD

Solar system connection



power wall system
* 51.2V 100Ah LiFePO4 Battery Powerwall
* Max in 5 Parallels to get 25.6KWH Energy
*Compatible with Numerous Inverter Brands
